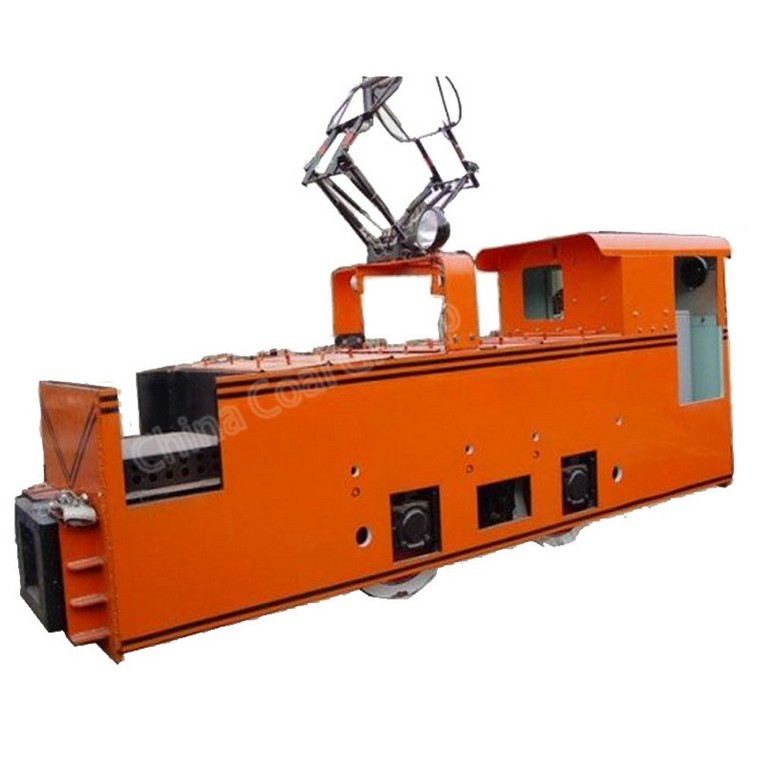

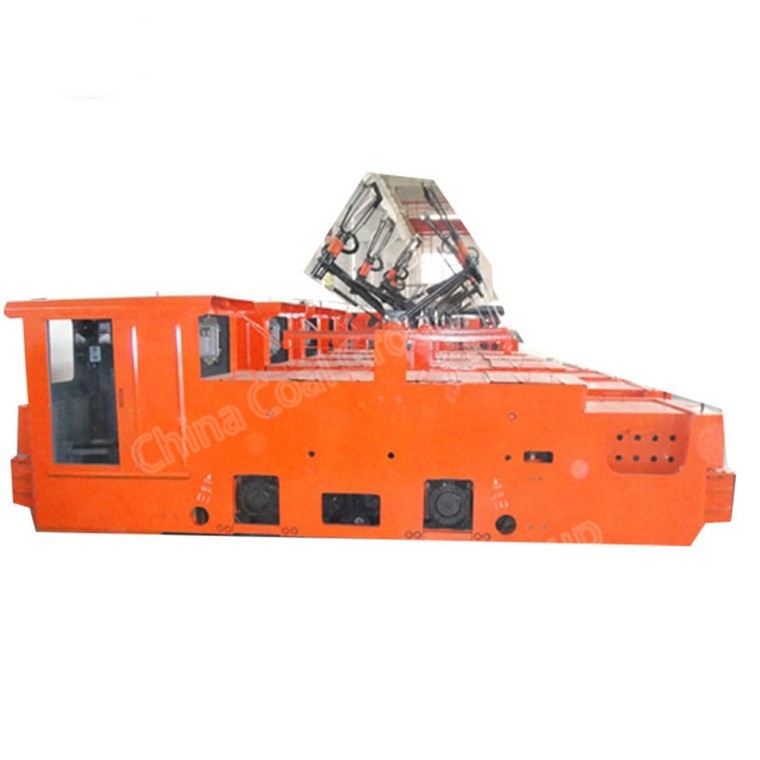

CJY 10 Ton Trolley Locomotive is divided into four types: general-purpose transmission type, wallboard thickening type, secondary transmission type and double machine traction. CJY 10 Ton Trolley Locomotive voltage is divided into 250V, 550V two.
CJY 10 Ton Trolley Locomotive, with the features of great tractive effort, heavy duty loading capacity, smoothly climbing and moving, safe braking control system, reliable and easy operation, simple maintenance, 25-30% energy saving compared to DC driving type, less emission, eco-friendly, etc, be widely used in large coal mines.
Main Parameter of|
Specifications |
CJY10/6GP |
CJY10/7GP |
|
Adhesive Total Weight (t) |
10 |
10 |
|
Track Gauge (mm) |
600 |
762 |
|
Wheelbase (mm) |
1100 |
1100 |
|
Wheel Diameter Over Tread |
680 |
680 |
|
Coupler Height over Steel Rail(mm) |
320/430 |
320/430 |
|
Min Curve radius (m) |
7 |
7 |
|
Pantograph Operation Height (mm) |
1800-2200 |
1800-2200 |
|
Braking Method |
Mechanical&Electrical |
Mechanical&Electrical |
|
Max Tractive Effort (KN) |
27.5 |
27.5 |
|
Max Speed (km/h) |
20 |
20 |
|
Rated Speed (km/h) |
10 |
10 |
|
Power of Traction (kw) |
2*22(30) |
2*22(30) |
|
DC Input Power Voltage |
DC250/550 |
DC250/550 |
|
Transmission |
Single Level Spur Gearing |
Single Level Spur Gearing |
|
Controller |
AC Frquency Conversion |
AC Frquency Conversion |
|
Over all Dimensions (mm) |
4460*1060*1590 |
4460*1340*1590 |
|
Service & Application |
Mucking in Mining&Tunneling |
Mucking in Mining&Tunneling |
