Introduction of CAY Mining Use Battery 25 Ton Locomotive
1.Track gauge: 762mm, 900mm
2.Max. traction force: 68.7kn
3.25T battery locomotive
The battery Locomotive is used for hauling mine cars, transporting mineral or equipments and personnel in underground mine with explosive mash gas and ash, it also can be used in surfaced mine, tunnel, and factory. As a conveyance, battery locomotive runs on track.
Main Parameter of CAY Mining Use Battery 25 Ton Locomotive
|
Specifications & Model Number
|
|
Specification
|
CAY25/7GP
|
CAY25/9GP
|
|
Adhesive/ Total Weight(t)
|
25
|
25
|
|
Track Gauge(mm)
|
762
|
900
|
|
Wheelbase(mm)
|
2000
|
2000
|
|
Wheel Diameter(mm)
|
680
|
680
|
|
Coupler Height Over Steel Rail(mm)
|
320/430
|
320/430
|
|
Min Curve Radius(m)
|
30
|
30
|
|
Battery Volt Rating(V)
|
288/540(620Ah)
|
288/540(620Ah)
|
|
Braking Method
|
Mechanical，Electrical，Air
|
Mechanical，Electrical，Air
|
|
Max Tractive Effort(KN)
|
68.7
|
68.7
|
|
Max Speed(km/h)
|
25
|
25
|
|
Rated Speed per hour(km/h)
|
8.8
|
8.8
|
|
Power of Traction Motor(KW)
|
2*65
|
2*65
|
|
Transmission
|
Dual Level Gearing
|
Dual Level Gearing
|
|
Controller
|
AC Frequency Conversion
|
AC Frequency Conversion
|
|
Over all Dimensions
|
6700*1550*2300
|
6700*1550*2300
|
|
Service& Application
|
Mucking in Mining& Tunneling
|
Mucking in Mining& Tunneling
|

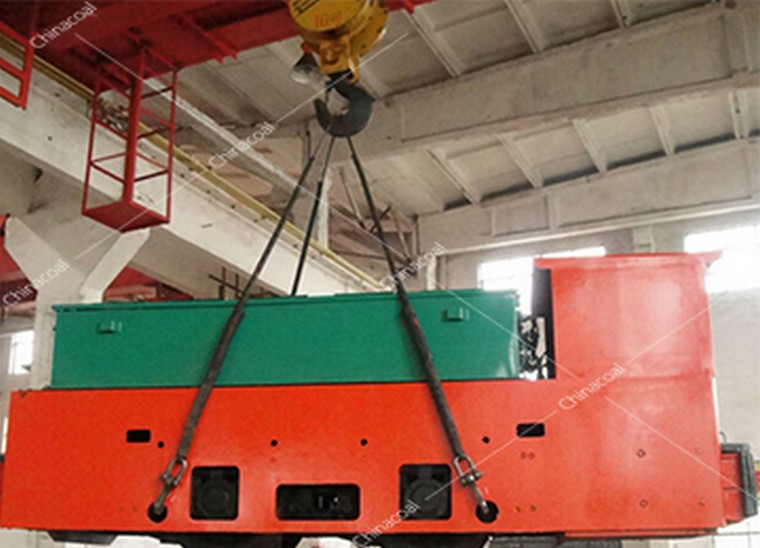

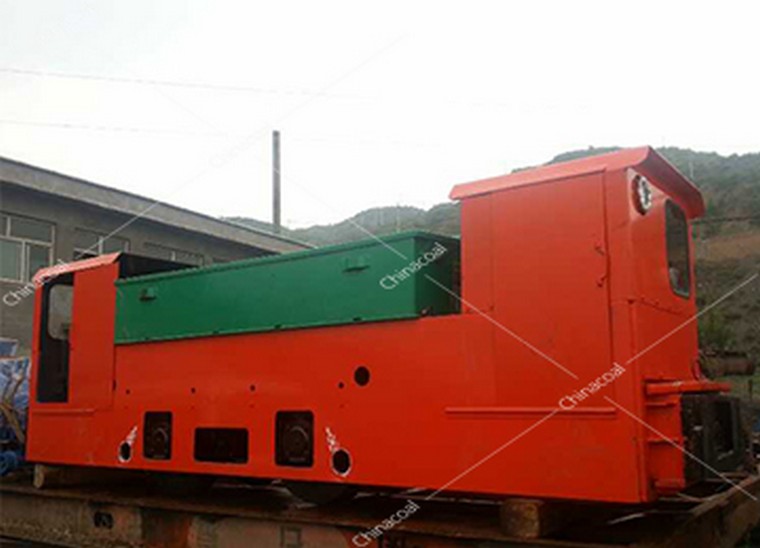

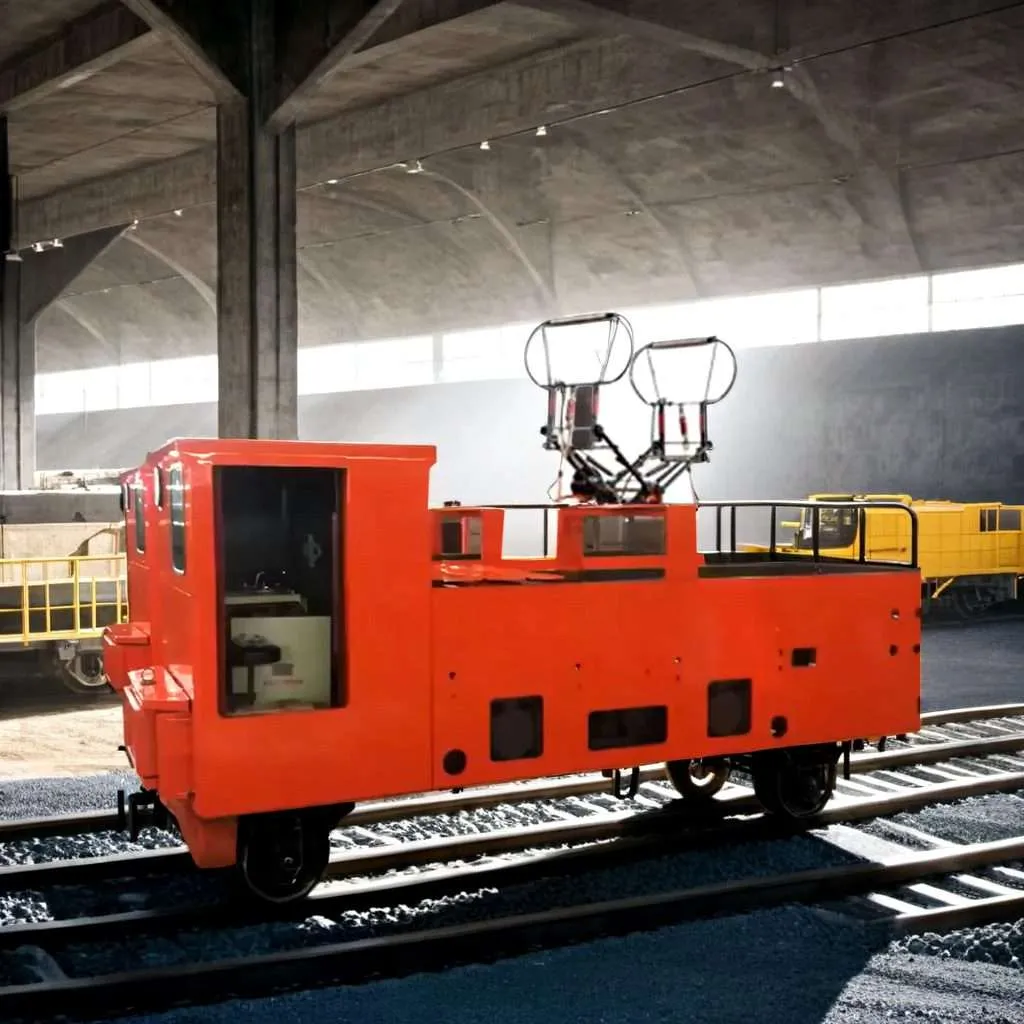

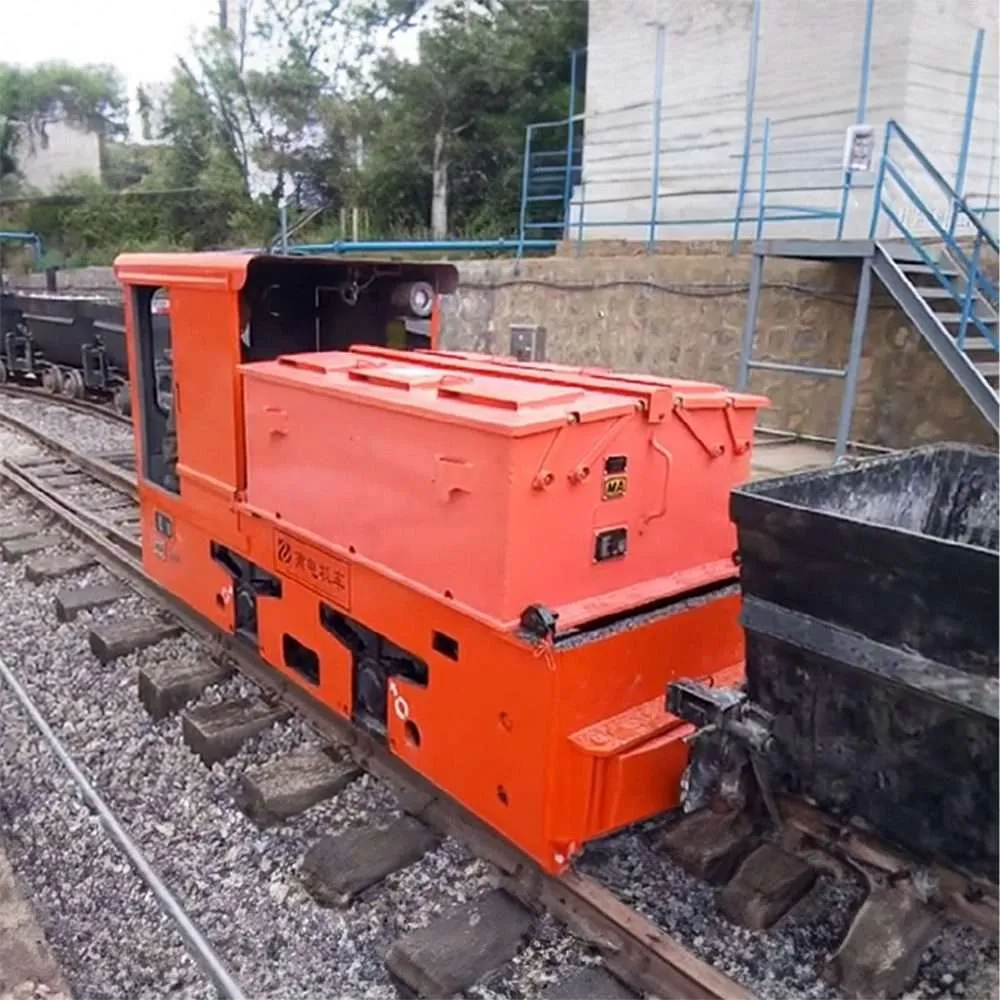

PHOTOS OF CAY Mining Use Battery 25 Ton Locomotive
